Product Description
Smooth Spear Point Top Residential Aluminum Single Gates
Enrich your outdoor space with this stylish aluminum fence design. The Smooth Spear Point Top design by Folsom Fence Supply is sure to elevate the beauty and bring function to any backyard, pool, or outdoor area.
Fence Height
The Smooth Spear Point Top aluminum fence design is available in 36”, 48”, 54”, 60”, & 72” Heights.
Width
Single Gates are Available in 36”, 48”, 60”, & 72” widths.
Our gates are fabricated 1 inch narrower than the size selected. This allows for proper spacing when using our recommended hardware. For example, our 48” wide gates measure 47” exact and allow 1” for the minimum hinge and latch spacing to create a 48” opening.

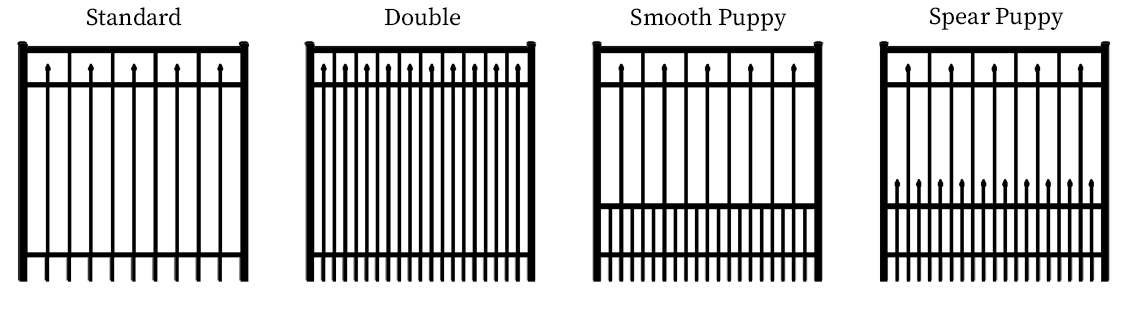

Picket Style
Picket Styles include Standard, Double, Smooth Puppy, & Spear Puppy.
Standard Picket spacing is 3-13/16”. Double Picket Spacing is 1-5/8”.
Smooth Puppy and Spear Puppy Picket styles incorporate an extra rail and combine Standard spacing above the 3rd rail with Double spacing below the 3rd rail. Double Picket and Puppy Picket are great options for small pets.

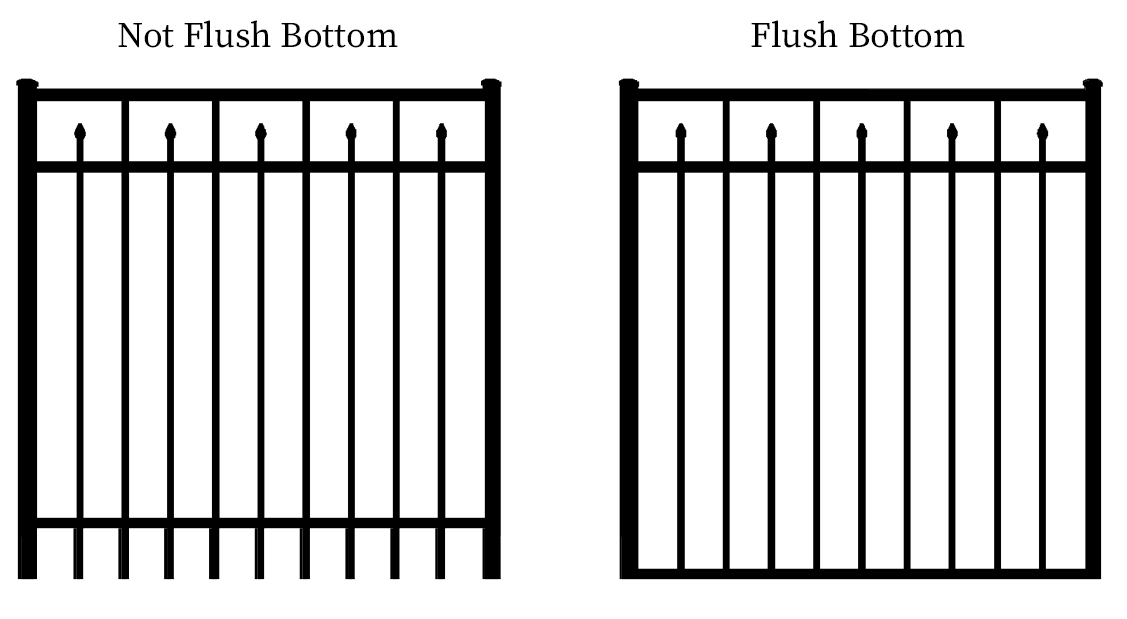

Bottom Rail Configuration
Bottom Rails can be configured as to allow the pickets to extend below the rail or to stop flush with the rail for a smooth and sleek finish.

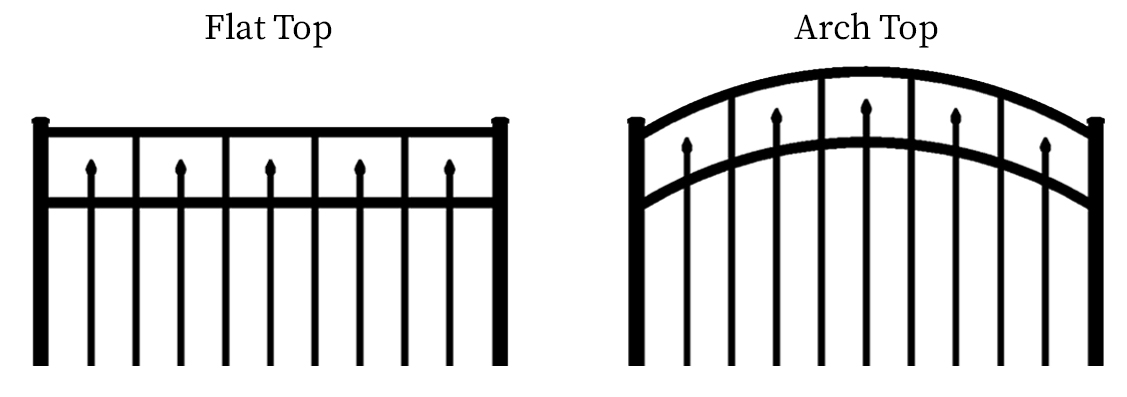

Top Design
Single Gates are available in Flat Top & Arch Top design.
Arch Top Gates have 6 inches of rise to center of arch.
Available Colors

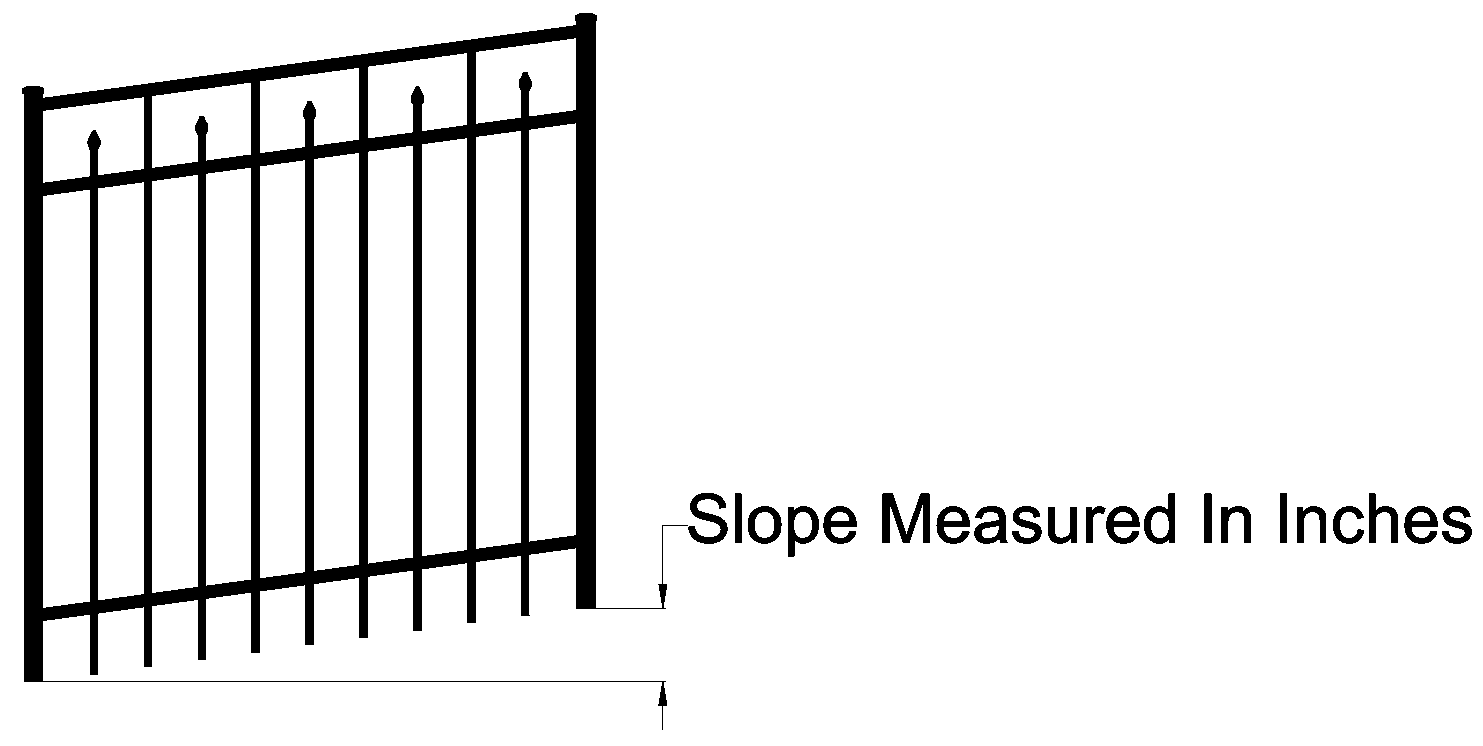

Sloped Gates
Gates can be ordered to accommodate hills or sloped terrain. If required, please select “Yes” from the slope option and indicate the proper amount of slope (inches) needed.

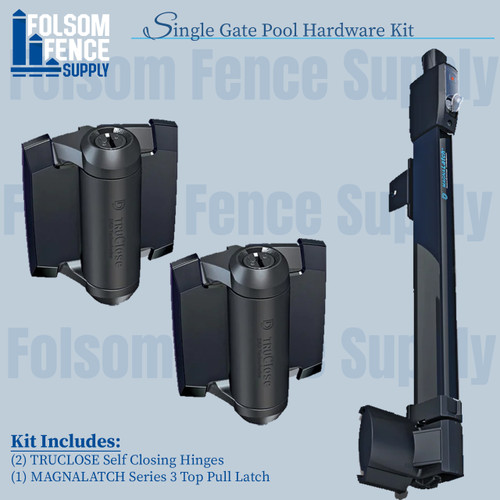

Hardware
Gates may be ordered with or without optional hardware. Options include

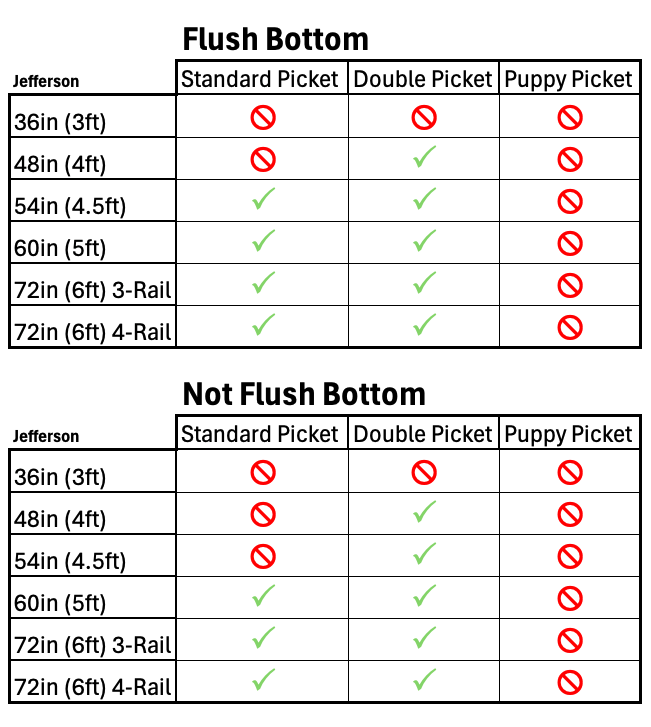

ICC Pool Code Approved Heights
Please check local codes before purchasing.
Specifications
Fully Welded Construction
Rails: 1in Sq.
Pickets: 5/8in Sq.
Uprights: 1-1/2in Sq.
6063-T5 Extruded Aluminum
AAMA 2603 Powder Coating
Warranty
All of our aluminum single gates come with a limited warranty. CLICK HERE to view our Warranty Page.
