Product Description
Jefferson Aluminum Double Gates
Enrich your outdoor space with this stylish aluminum fence design. The JEFFERSON by Folsom Fence Supply is a 3-rail smooth top with spear accent design that is great for both residential and commercial applications and will stand the test of time and bring function to any backyard, pool, or outdoor area.
Fence Height
The JEFFERSON aluminum fence design is available in 36”, 48”, 54”, 60”, & 72” Heights.
Width
Double Gates are Available in 96”, 120”, & 144” Widths.
Our double gates are fabricated 2 inches narrower than the size selected. This allows for proper spacing when using our recommended hardware. For example, each half of our 96” wide gates measure 47”. Combined, this equals 94" leaving 2” for the minimum hinge and latch spacing to create a 96” opening.

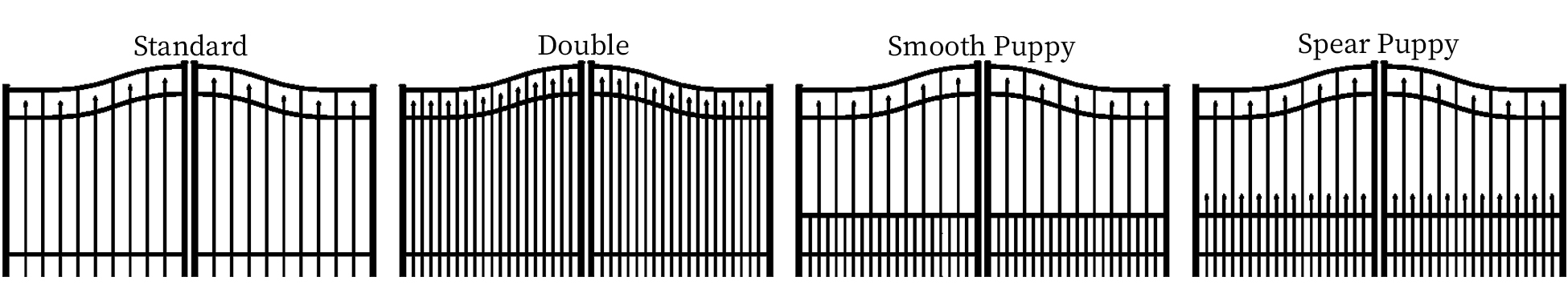

Picket Style
Picket Styles include Standard, Double, Smooth Puppy, & Spear Puppy.
Standard Picket spacing is 3-13/16”. Double Picket Spacing is 1-5/8”.
Smooth Puppy and Spear Puppy Picket styles incorporate an extra rail and combine Standard spacing above the 3rd rail with Double spacing below the 3rd rail. Double Picket and Puppy Picket are great options for small pets.

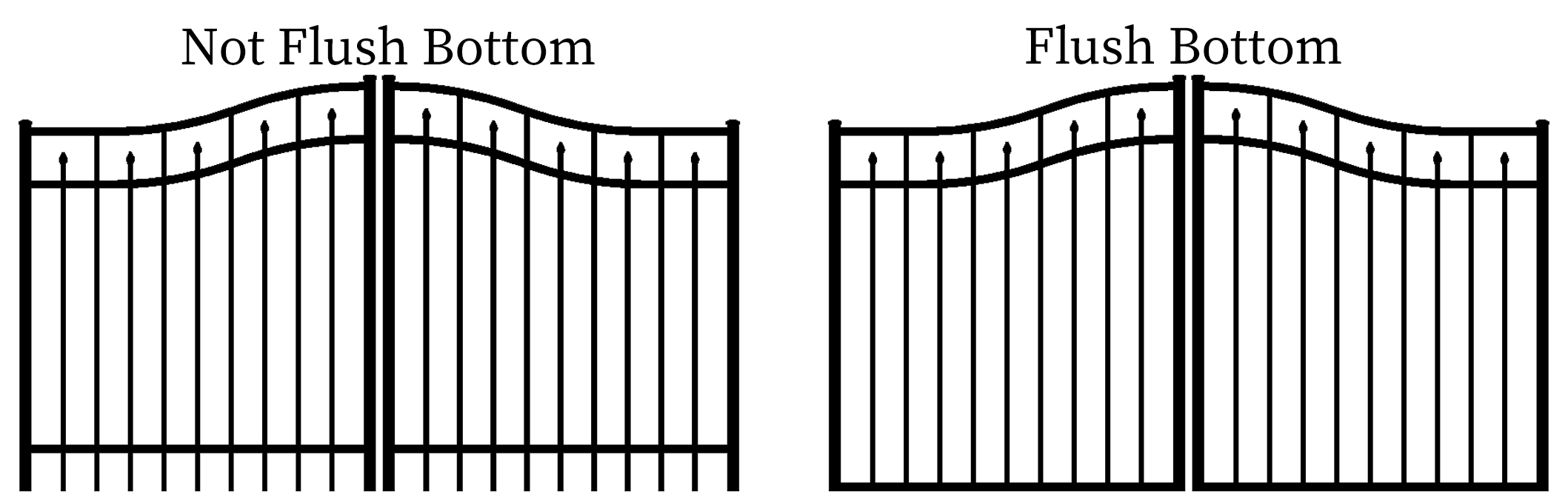

Bottom Rail Configuration

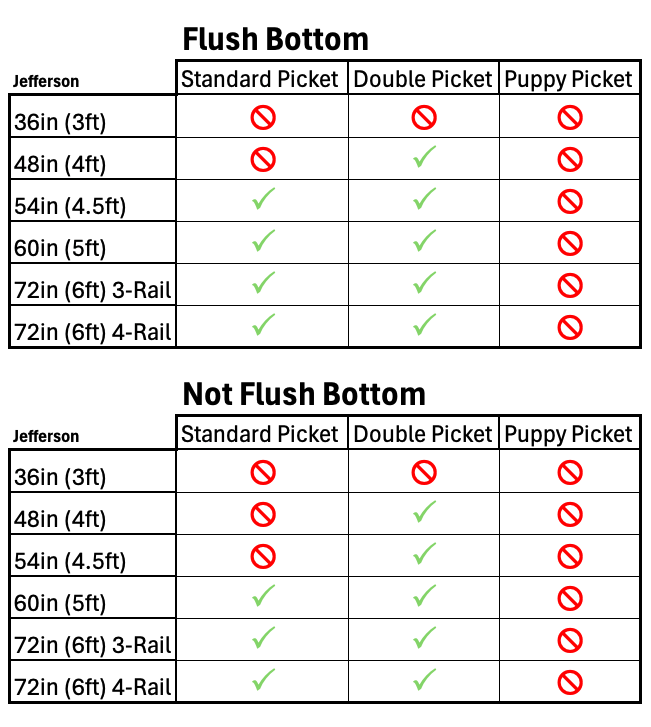

Bottom Rails can be configured as to allow the pickets to extend below the rail or to stop flush with the rail for a smooth and sleek finish.

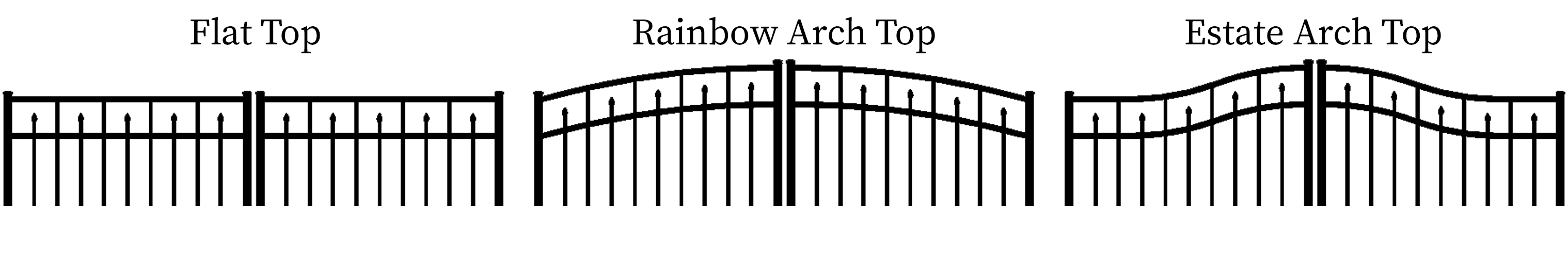

Top Design
Double Gates are available in Flat Top, Rainbow Arch, & Estate Arch design.
96" wide gates have 6" of rise measured to the center of the gate for Rainbow and Estate designs.
120" & 144" wide gates have 12" of rise measured to the center of the gate for Rainbow and Estate designs.
Available Colors

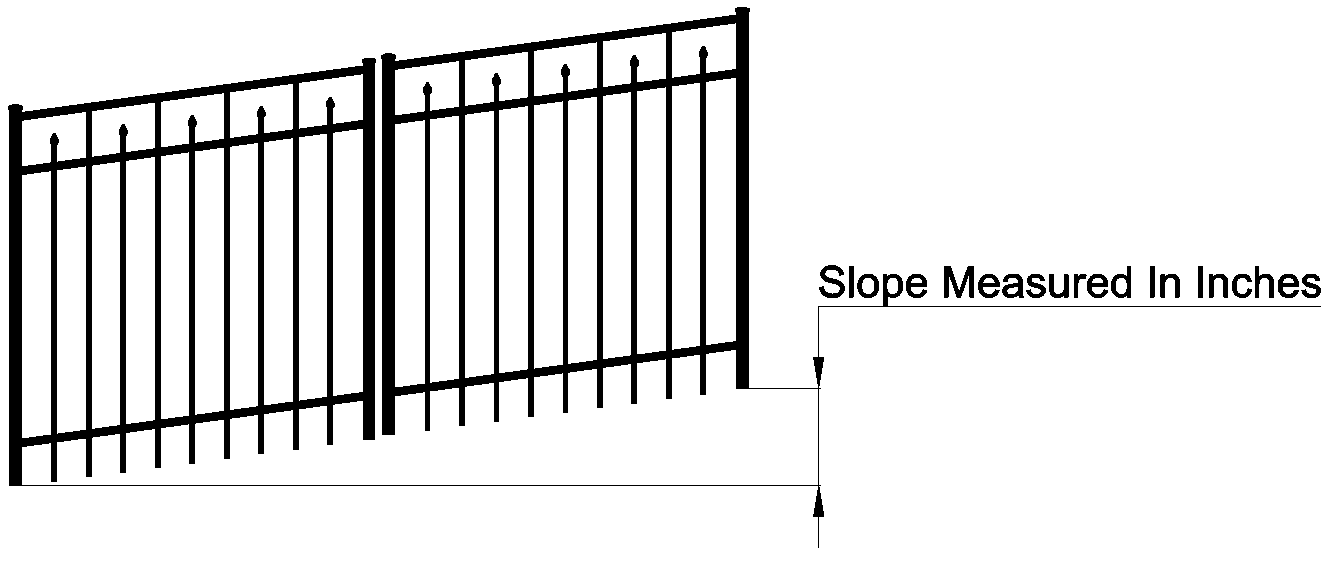

Sloped Gates
Gates can be ordered to accommodate hills or sloped terrain. If required, please select “Yes” from the slope option and indicate the proper amount of slope (inches) needed.
Hardware
Gates may be ordered with or without optional hardware. Options include
ICC Pool Code Approved Heights
Please check local codes before purchasing.
Specifications
Fully Welded Construction
Rails: 1in Sq.
Pickets: 5/8in Sq.
Uprights: 1-1/2in Sq.
6063-T5 Extruded Aluminum
AAMA 2603 Powder Coating
Warranty
All of our aluminum double gates come with a limited warranty. CLICK HERE to view our Warranty Page.
