Product Description
Livingston Residential Aluminum Double Gates
Heighten the appeal of your outdoor space with this ornate aluminum fence design. The LIVINGSTON by Folsom Fence Supply is a 3-rail alternating spear top design that is sure to beautify and bring function to any backyard, pool, or outdoor area.
Fence Height
The LIVINGSTON aluminum fence design is available in 36”, 48”, 54”, 60”, & 72” Heights.
Width
Double Gates are Available in 96”, 120”, & 144” Widths.
Our double gates are fabricated 2 inches narrower than the size selected. This allows for proper spacing when using our recommended hardware. For example, each half of our 96” wide gates measure 47”. Combined, this equals 94" leaving 2” for the minimum hinge and latch spacing to create a 96” opening.
Picket Style

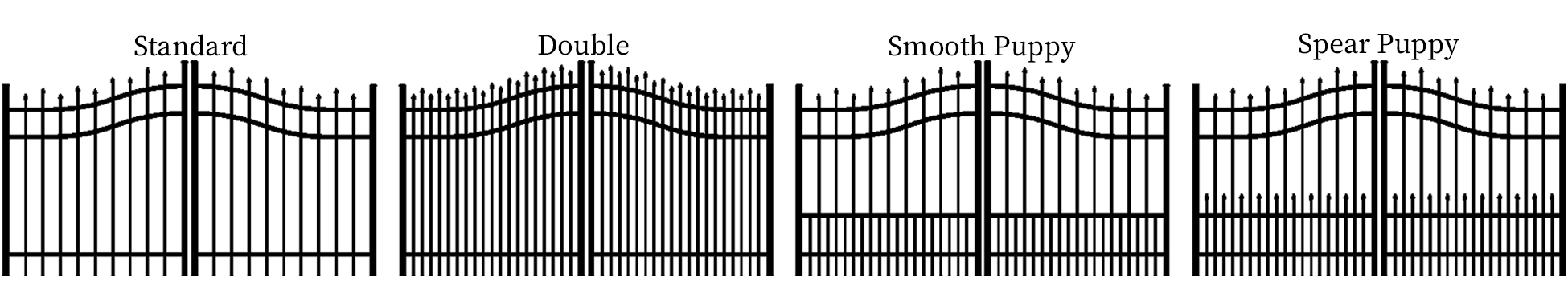

Picket Styles include Standard, Double, Smooth Puppy, & Spear Puppy.
Standard Picket spacing is 3-13/16”. Double Picket Spacing is 1-5/8”.
Smooth Puppy and Spear Puppy Picket styles incorporate an extra rail and combine Standard spacing above the 3rd rail with Double spacing below the 3rd rail. Double Picket and Puppy Picket are great options for small pets.

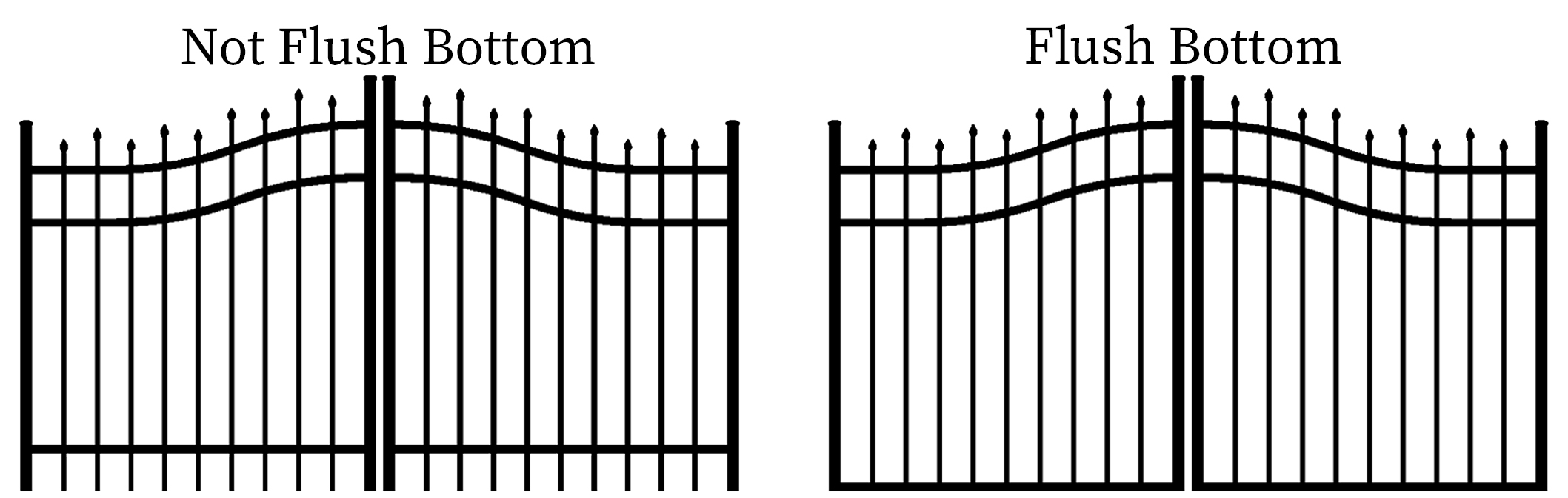

Bottom Rail Configuration
Bottom Rails can be configured as to allow the pickets to extend below the rail or to stop flush with the rail for a smooth and sleek finish.
Top Design

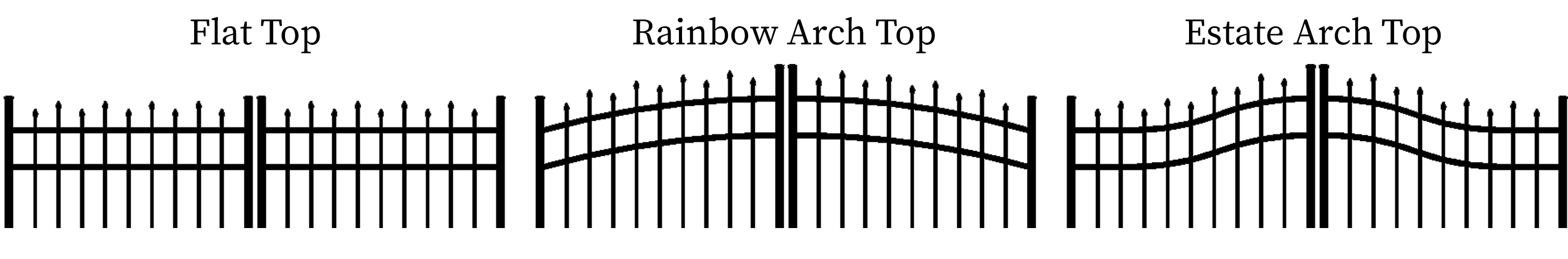

Double Gates are available in Flat Top, Rainbow Arch, & Estate Arch design.
96" wide gates have 6" of rise measured to the center of the gate for Rainbow and Estate designs.
120" & 144" wide gates have 12" of rise measured to the center of the gate for Rainbow and Estate designs.
Available Colors

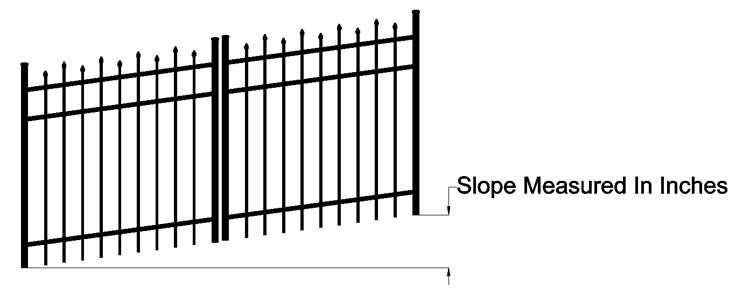

Sloped Gates
Gates can be ordered to accommodate hills or sloped terrain. If required, please select “Yes” from the slope option and indicate the proper amount of slope (inches) needed.

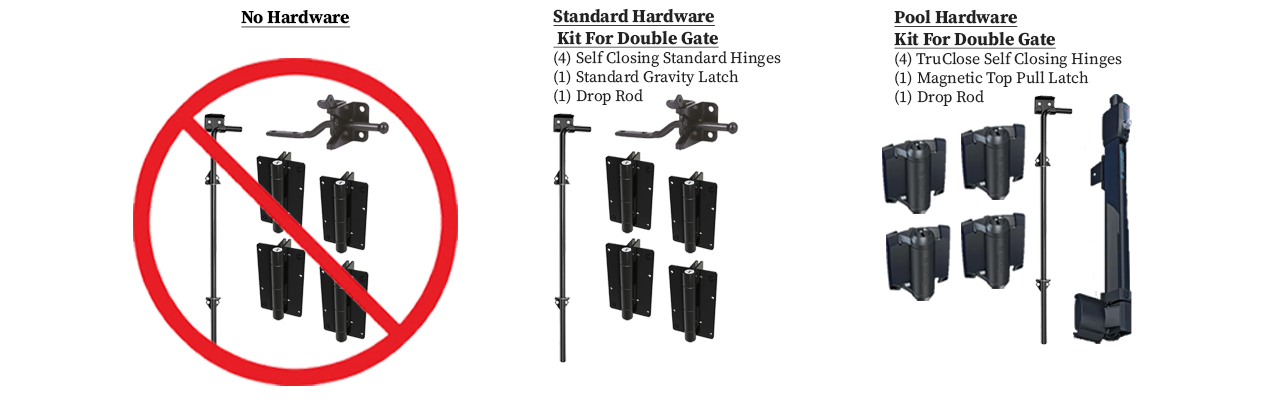

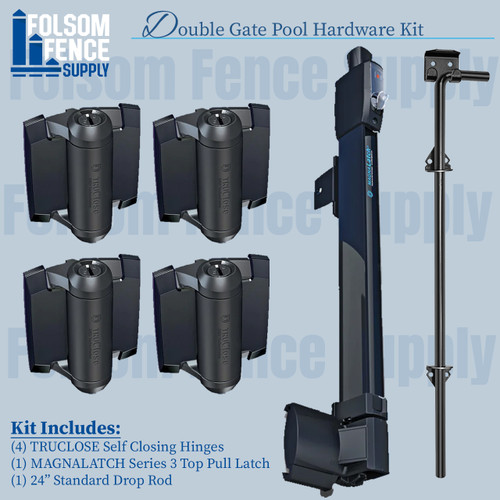

Hardware
Gates may be ordered with or without optional hardware. Options include
ICC Pool Code Approved Heights
Please check local codes before purchasing.
Specifications
Fully Welded Construction
Rails: 1in Sq.
Pickets: 5/8in Sq.
Uprights: 1-1/2in Sq.
6063-T5 Extruded Aluminum
AAMA 2603 Powder Coating
Warranty
All of our aluminum double gates come with a limited warranty. CLICK HERE to view our Warranty Page.
